Castors
Trolley Wheels and Castors for Sale in South Africa
Trolley wheels and castors from Dreymar Industrial are the mobility components that move South African warehouses, factories, hospitals, and workshops. Dreymar stocks the country's most comprehensive range of industrial trolley wheels and castors, from light-duty office trolleys to heavy-duty industrial carts carrying loads over 1,500kg. Choose by load capacity, wheel material, or mounting type - all available with same-day quotes and nationwide delivery.
Trolley Wheels by Load Capacity
Light-duty (up to 100kg per wheel) - 50kg to 150kg per wheel. Polyurethane or nylon wheels on the 22 Series. Suitable for office trolleys, light shop fittings, and indoor light-duty use.
Medium-duty (100kg to 250kg per wheel) - the 22 Series and 61 Series cover this range. Polyurethane or super elastic rubber. Suitable for factory floors, retail back-of-house, and general industrial trolleys.
Heavy-duty (250kg to 500kg per wheel) - the TS/XX Series with polyurethane on steel hub or cast iron wheels. Suitable for warehouse pallet movers, manufacturing trolleys, and equipment carts.
Extra-heavy-duty (500kg to 1,500kg per wheel) - the TH Heavy Duty Series and STC Heavy Duty Series. Polyurethane on cast iron hub. Suitable for foundries, steel mills, and the heaviest industrial loads.
Wheel Materials - Choosing the Right Type
The wheel material is the single most important factor when selecting a castor. Each material suits different floor types, load weights and environmental conditions:
- Polyurethane wheels - the most popular choice for warehouse and factory floors. Floor-friendly, quiet-rolling, wear-resistant and load-bearing. Available in medium-duty and heavy-duty grades. Recommended for most general industrial applications.
- Super elastic rubber (SER) wheels - the best choice for shock absorption and floor protection. Ideal for trolleys carrying fragile or sensitive loads, or operating on mixed and uneven surfaces.
- Nylon wheels - lightweight, chemical-resistant and affordable. Suited to light and medium-duty trolleys on smooth, dry floors.
- Cast iron wheels - extremely durable and heat-resistant to 280°C. Used in foundries, steel mills and high-temperature industrial environments.
- Pneumatic wheels - inflatable tyre on a steel rim for outdoor and rough-surface applications. Excellent shock absorption for uneven ground.
- Solid rubber wheels - quieter than nylon, more durable than pneumatic. Good all-round option for mixed indoor and outdoor use.
Castor Configurations Available
All wheel types are available in multiple mounting configurations:
- Swivel castors - rotate 360° for full manoeuvrability. Used on all four corners of trolleys requiring directional flexibility.
- Fixed castors - directional only. Typically used on the rear two positions of a trolley for straight-line tracking.
- Swivel with brake - swivel castor with a locking mechanism to hold the trolley stationary. Required in any application where the trolley must stay in place during loading or unloading.
Series Available
Dreymar's castor range is organised into three main series to suit different load ratings and applications:
- 22 Series - medium-duty. The most commonly specified series for general warehouse and factory trolleys.
- 61 Series - heavy-duty with roller bearing. Suited to high-load applications in manufacturing and logistics.
- TS/XX Series - heavy-duty with double ball bearing. The highest-specification series in the Dreymar range for demanding industrial environments.
Not Sure Which Castor to Choose?
The right castor depends on four factors: load weight, floor type, operating environment and required mobility. If you are replacing castors on an existing trolley, note the existing wheel diameter, plate size and bolt spacing before ordering - these measurements are on the product pages for each series.
For new trolleys and equipment builds, the Dreymar team can assist with castor selection. Explore the full range including 22 Series castors, TS/XX Series castors and scaffold castors. For the trolleys these castors fit, see our industrial trolleys range. For full materials handling solutions, visit our materials handling solutions page.
Industrial Castors and Castor Wheels in South Africa
A castor is a complete mechanical assembly that integrates a wheel inside a mounting housing to enable equipment mobility. While a standalone wheel only rotates on a single fixed axle, a castor features an integrated bracket system that allows for steering, structural attachment, and directional orientation.
The Core Technical Difference: Castors vs Wheels
Understanding the exact structural difference between castors and wheels is critical for safe plant procurement. A wheel is simply the round, rotating component featuring a central bore and integrated bearings. It cannot attach directly to a flat chassis without a separate axle housing.
Conversely, industrial castors enclose the wheel within a robust steel rig (also known as a yoke or fork). This rig is engineered with a mounting plate or stem, converting standard rolling elements into bolt-on mobility systems for heavy machinery, logistics cages, and warehouse work platforms.
Mechanical Configurations: Understanding the Types of Castors
Industrial mobility layouts rely on combining specific types of castors to achieve balance, steering accuracy, and structural tracking control.
Swivel Castors
Engineered with a dual ball-race swivel mechanism in the mounting head, swivel castors rotate a full 360 degrees under load. This design allows operators to maneuver heavy material handling equipment through tightly packed warehouse aisles, changing direction instantly without dragging the structural wheel face.
Fixed (Rigid) Castors
Fixed rigs are structurally locked along a single directional plane. They provide structural directional tracking, ensuring that heavy-duty trolleys travel in straight operational lines over long facility distances without fishtailing or drifting off course.
Braked Castors
Safety regulations across industrial plants demand secure locking compliance. Braked variants integrate a mechanical foot pedal that locks either the wheel rotation alone or provides total lock capabilities, freezing both wheel rotation and the 360-degree swivel matrix simultaneously.
Technical Selection Matrix: Wheel Material Engineering
The wheel material dictates roll resistance, floor preservation, noise dampening, and chemical protection. Selecting the wrong profile can destroy specialized epoxy coatings or freeze up bearings under heavy static loads.
Industrial Material Profiles & Application Alignment
- Polyurethane Castors: Best for high-capacity corporate warehouses and engineering floors. They offer low rolling resistance and high load capacities while actively protecting concrete surfaces from marring.
- Nylon Castor Wheels: Best for food processing, pharmaceutical labs, and chemical environments. Solid nylon resists moisture absorption, steam cleaning cycles, and corrosive cleaners, though it runs loudly on rough terrain.
- Rubber Castors: Best for institutional transport, uneven pavement, and shock absorption. These wheels roll silently over debris, protecting fragile payloads from intense vibrations.

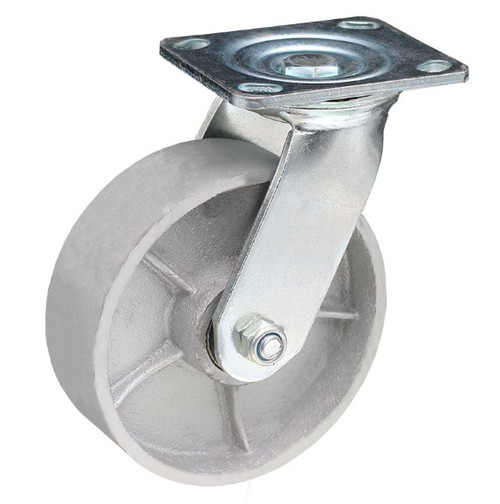

- Cast Iron Castors: Best for extreme high-temperature environments like bakeries, foundries, and steel manufacturing plants. They deliver virtually zero roll resistance and withstand extreme heat up to 280°C.
Wheel Material vs Floor Type and Performance Matrix
| Material Profile | Recommended Floor Type | Rolling Resistance | Floor Protection | Temperature Range | Primary Industry Use |
|---|---|---|---|---|---|
| Polyurethane (PU) | Smooth Concrete, Epoxy | Very Low | Excellent | -15°C to 80°C | Fulfillment Centres, Automotive Assembly |
| Nylon (NY) | Tiled, Smooth Resin | Extremely Low | Moderate | -10°C to 70°C | Abattoirs, Cold Storage, Bakeries |
| Cast Iron (CI) | Steel Plate, Rough Concrete | Minimum | Low (Marking Risk) | -5°C to 280°C | Foundries, Brick Kilns, Heavy Engineering |
| Elastic Rubber (SER) | Asphalt, Uneven Concrete | Moderate | Maximum | -20°C to 60°C | Waste Management, Outdoor Flight Cases |
Load Capacity Classifications and Duty Cycles
Exceeding the rated capacity of your castor wheels creates a high risk of catastrophic failure, flat-spotting, and workplace injury. Industrial configurations are grouped into clear load envelopes based on the thickness of the steel housing, bearing architecture, and axle diameter.
Duty Bands and Structural Load Capacity Ratings
| Duty Classification | Wheel Diameter Options | Bearing Configuration | Load Capacity Range (Per Wheel) | Target Applications |
|---|---|---|---|---|
| Light-Duty | 50mm - 75mm | Plain / Ball Bearing | Up to 100kg | Office furniture, display racks, mobile medical carts |
| Medium-Duty (22 Series) | Castor wheels 100mm - 125mm | Pressed Steel Ballrace | 100kg to 250kg | Retail stock trolleys, laundry cages, light workshop benches |
| Heavy-Duty (61 / TS/XX Series) | 100mm - 200mm | Double Precision Ball Bearing | 250kg to 500kg | Automotive stills, manufacturing jigs, assembly lines |
| Extra-Heavy Duty (TH / STC) | 150mm - 250mm | Machined Tapered Roller Bearings | 500kg to 1500kg | Aircraft ground support, mining platforms, steel mill tracks |
Comprehensive Selection Guide: The 4-Pillar Decision Tree
Before selecting your hardware configuration, follow this technical checklist to match your application with the correct equipment specs:
[1. DETERMINE TOTAL MAX LOAD]
│
▼
(Payload + Equipment Weight) ÷ 3 = Required Safe Capacity Per Castor
│
▼
[2. EVALUATE FLOOR CONDITION]
├── Smooth / Delicate Floors ──► Select Polyurethane or Soft Rubber Wheels
└── Rough / Outdoor / Steel ───► Select Cast Iron, Nylon, or Elastic Rubber
│
▼
[3. ASSESS THE ENVIRONMENT]
├── Chemical / Wet / Washdown ─► Specify Nylon Rigs with Stainless Fasteners
└── High Ambient Heat (Foundry) ─► Specify Cast Iron Wheels with High-Temp Grease
│
▼
[4. DEFINE MANEUVERABILITY NEEDS]
├── Tight Spaces / Directional ─► Pair 2 Swivel Castors + 2 Swivel-Brake Castors
└── Long Straight Hauls ────────► Pair 2 Swivel Castors + 2 Fixed (Rigid) Castors- Explore Full Plant Solutions: Integrate your structural mobility setup with our heavy-duty options on the Ladders Category Hub.
Your Most Common Questions, Answered
1. What are castors and wheels used for?
Castors and wheels are mobility components that allow equipment, trolleys, furniture, and machinery to move smoothly and safely across various floor surfaces. They're essential in warehouses, hospitals, workshops, and industrial environments.
2. What is the difference between castors and wheels?
Wheels are the rolling components, while castors are complete assemblies that include a wheel, mounting plate or stem, and a swivel or fixed bracket. Castors enable rotation and movement, making trolleys manoeuvrable.
3. What types of castors does Dreymar supply?
Dreymar supplies a wide variety of castors, including swivel castors, fixed castors, braked castors, and heavy-duty castors suitable for everything from light retail trolleys to industrial machinery.
4. What sizes of trolley wheels are available?
We stock a comprehensive range of sizes from light-duty 50mm wheels to heavy-duty 200mm+ castors and wheels, ensuring compatibility with any trolley type or application.
5. Which materials are used in your castors and wheels?
Our wheels are made from rubber, polyurethane (PU), nylon, cast iron, and thermoplastic rubber (TPR), each suited to different floor surfaces and load requirements.
6. How much weight can your castors support?
Load capacities vary. Light-duty castors may support 40–100kg per wheel, while heavy-duty options can carry loads exceeding 1,000kg. Always check the product specs or request guidance for high-load applications.
7. Are your trolley wheels suitable for rough or uneven floors?
Yes. We offer PU and pneumatic castor wheels designed specifically for rough or uneven flooring. These options reduce vibration and protect both the load and flooring surface.
8. Can I buy braked castors from Dreymar?
Absolutely. We stock braked castors that lock both wheel rotation and swivel movement for enhanced stability on inclined or uneven surfaces.
9. Do you offer stainless steel castors for food or medical use?
Yes. Dreymar offers corrosion-resistant stainless steel castors suitable for clean-room environments, food processing facilities, and medical applications.
10. Can I replace just the wheel or do I need the whole castor assembly?
In many cases, you can replace just the wheel if the housing is intact. However, if the swivel or brake mechanism is worn, it’s advisable to replace the full castor assembly for safety and performance.
11. What is the lead time for bulk castor orders?
Lead times depend on quantity and product type. Most standard items are available for fast dispatch. For large or specialised orders, lead time is typically 3–5 working days.
12. Do you offer castors with top plate or bolt hole mounting?
Yes, our range includes both plate-mounted and stem (bolt hole) castors to suit various applications. Be sure to match your mounting style when selecting replacements.
13. Are your castors floor-friendly?
Yes. We stock non-marking wheels, including rubber and PU options, designed to protect sensitive flooring such as tiles, vinyl, or polished concrete.
14. How do I choose the right trolley wheel or castor for my application?
Consider load capacity, floor surface, required mobility (fixed vs. swivel), environmental conditions, and mounting type. Or simply contact Dreymar’s team for tailored advice.
15. How do I request a quote for castors and wheels?
Use the “Add to Quote” function found on each product listing. Just specify the wheel size or load requirement, submit the form, and the Dreymar team will get in touch with a formal quote and next steps.
